Upper Midwest Environmental Sciences Center

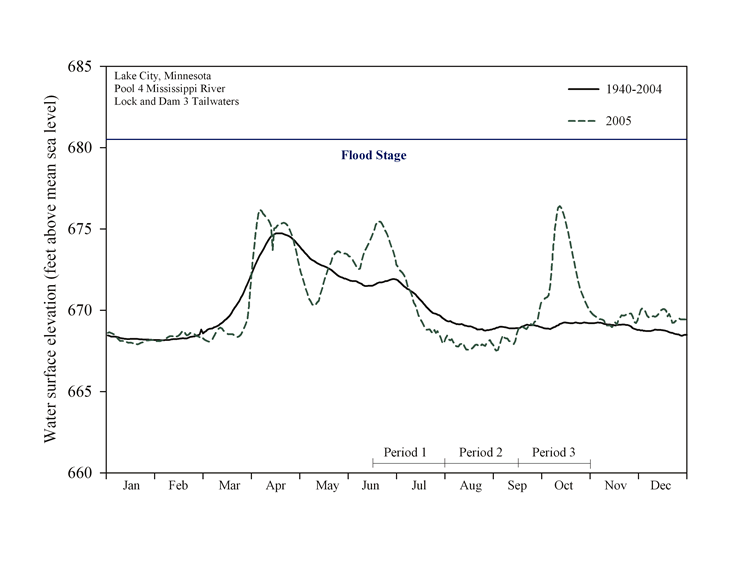

Figure 1.1

Daily water surface elevation from Lock and Dam 3 for Pool 4, Upper Mississippi River, during 2005 and mean elevation since 1940. The U.S. Army Corps of Engineers discharge data were obtained in accordance with Upper Midwest Environmental Sciences Center established procedures (Wlosinski et al. 1995).
